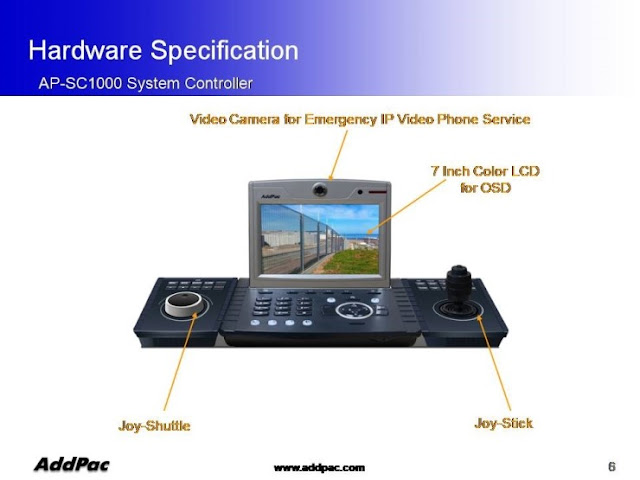

AP-SC1000 CCTV OnVif PTZ 시스템 컨트롤러 (Onvif PTZ JoyStick System Controller), Onvif PTZ 조이스틱 조그셔틀













AP-GTR1000 GPS NTP Server for time synchronization (GPS 시각 동기장치), 임베디드GPS NTP 서버, CCTV 서버 시각동기








AP-GTR1000 IP based GPS time receiver terminal transmits GPS time information to network based application server which requires accurate time information.  Legacy GPS Time Receiver products only support RS232C Interface but AddPac AP-GTR1000 supports fast Ethernet port as well as dual RS232 interface for backward compatibilityAP-GTR1000 IP-based GPS time receiver terminal is easy to manage remotely and provides excellent scalability. This device can be applied to various real-time video applications such as video surveillance, traffic management and monitoring for disaster prevention

IP based GPS Time Receiver Terminal

AP-GTR1000 IP based GPS time receiver terminal transmits GPS time information to network based application server which requires accurate time information via ethernet port. In local area network, this device transmits GPS based time information to application server like as CCTV recording server by using IP based protocol. Without GPS based time synchronization or NTP server, if time is passed after installation or in service, each application server’s time clock is mismatched comparing with GPS based real-time. Especially, in case of CCTV application, time mismatching should be solved between real-time and CCTV application server’s current time. AP-GTR1000 provides easy system cabling and Installation service by using LAN interface. Also, AP-GTR1000 provides third party’s example API for Window or Linux application developer.
In front of AP-GTR1000, there are LCD display for GPS time information and blue LAMP for device status. Also, there are one fast Ethernet port and console port. At the rear of AP-GTR1000, there is one module slot for AP-GPSR2 module. AP-GPSR2 module provides dual DB-9 RS232 interface port and GPS antenna interface port.

Firmware Upgradeable Structure

AP-
GTR1000 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.

Smart Web Manager Function

A
P-GTR1000 GPS Time Receiver is embedded with Smart Web Manager for system management. User may setup/manage AP-GTR1000 system through PC, smart phone, and tablet device.

AddPac
network products are well recognized in terms of performance and stability in the world. With our accumulated experience in enterprise market and communication market, AP-GTR1000 will satisfy the needs of customer along with AddPac network DVR solution.


Network Diagram

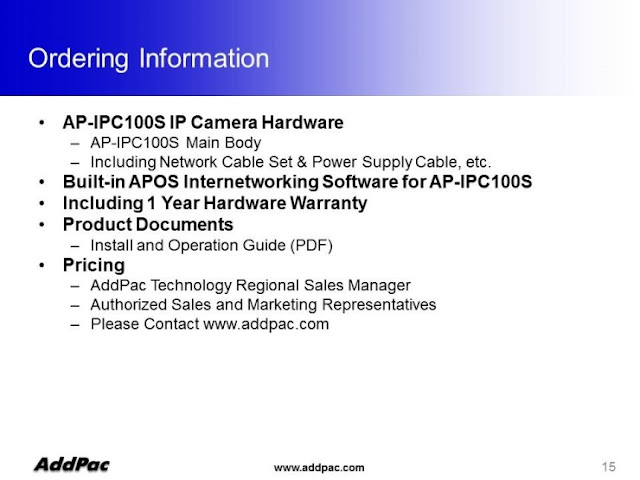

AP-IPC100S SD 급 IP 카메라 (MPEG4, H.264 비디오코덱 지원), 무인시설 통합보안관제 솔루션
